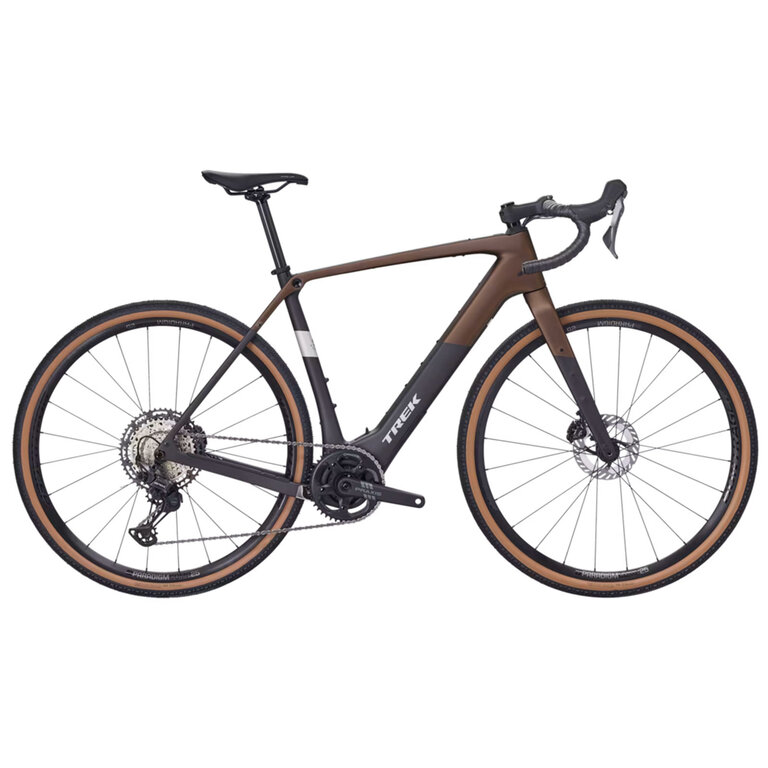

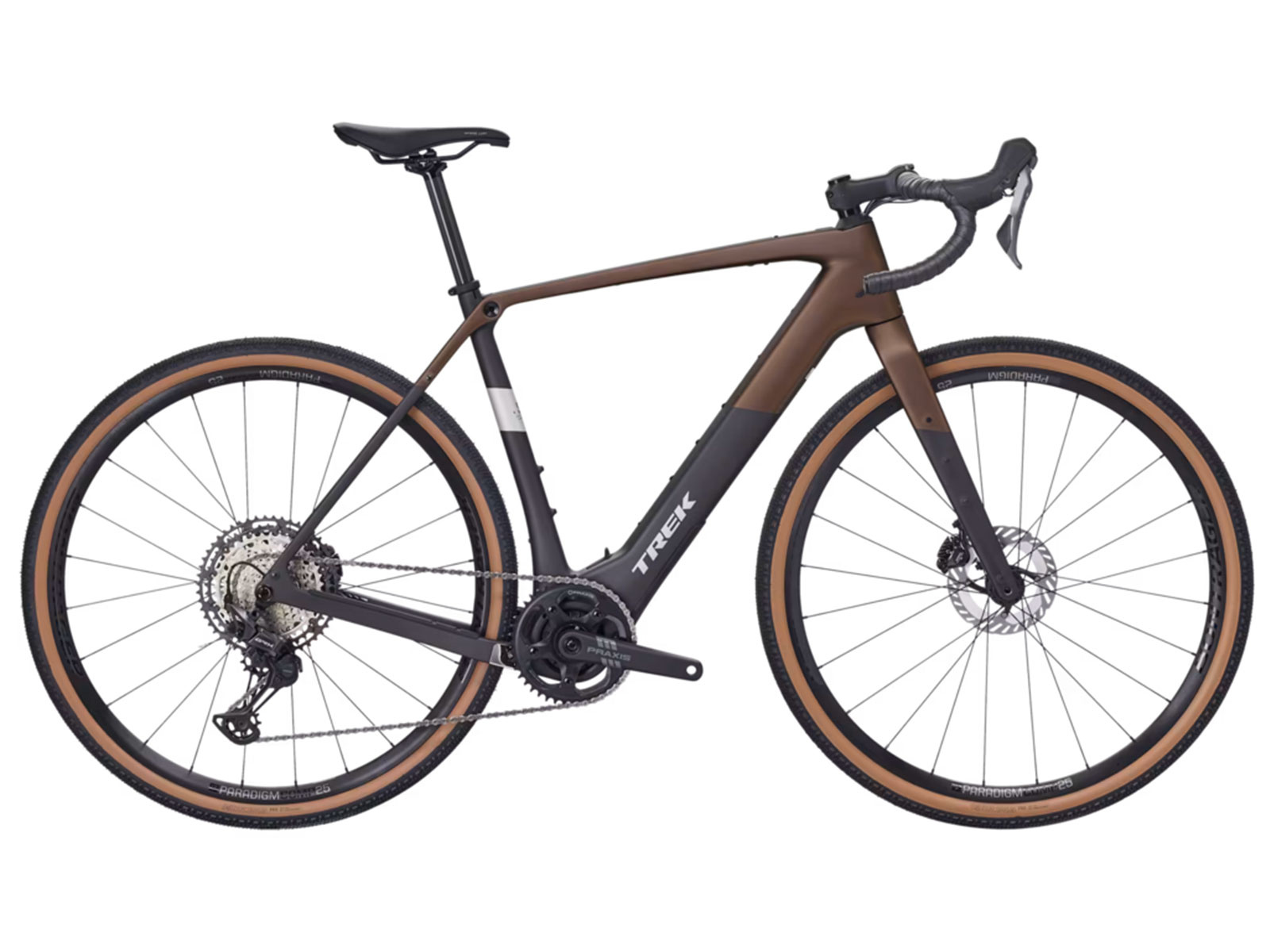

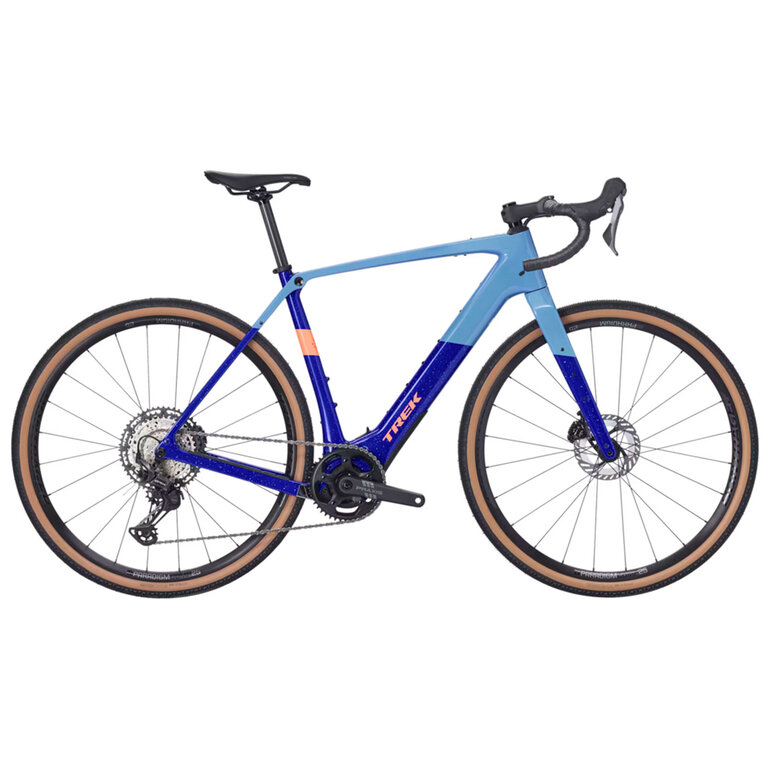

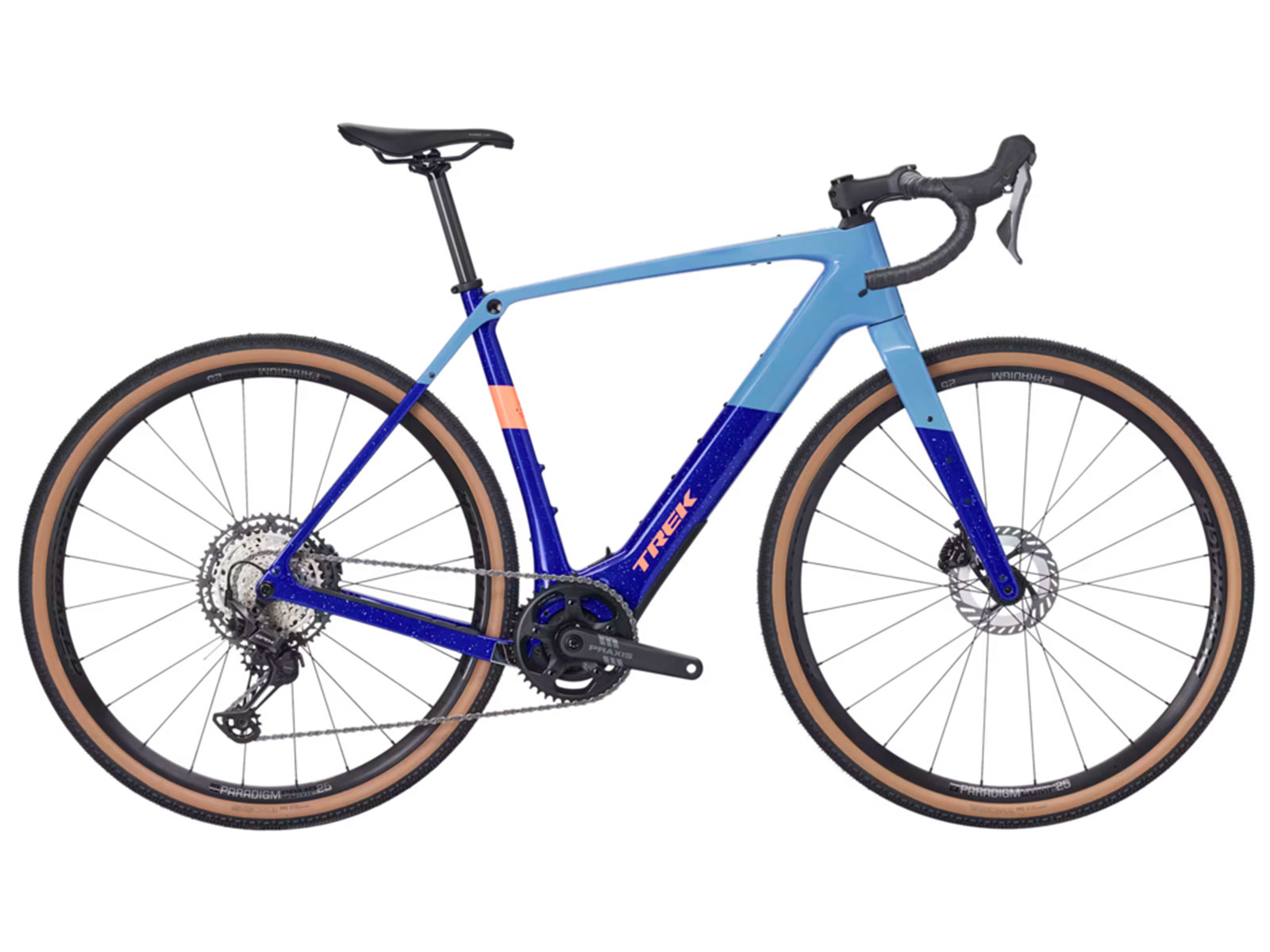

Trek Checkpoint+ Carbon SL 5
| FRAME | 500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle |
| FORK | Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle |
| DISPLAY | TQ LED Display with Bluetooth & ANT+ connectivity |
| BATTERY | TQ 360 Wh |
| DRIVE UNIT | TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power |
| CHARGER | TQ 4A charger |
| FRONT RIM | Bontrager Paradigm Comp 25, Tubeless Ready |
| REAR RIM | Bontrager Paradigm Comp 25, Tubeless Ready |
| FRONT HUB | Bontrager Paradigm Comp 25, Tubeless Ready, 100x12mm Thru-Axle |
| REAR HUB | Bontrager Paradigm Comp 25, Tubeless Ready, Micro Spline, 142x12mm Thru-Axle |
| SPOKES | Black |
| FRONT TIRE | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm |
| REAR TIRE | Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm |
| FRONT BRAKE | Shimano GRX RX820 Hydraulic Disc Brake 160mm |
| REAR BRAKE | Shimano GRX RX820 Hydraulic Disc Brake 160mm |
| SHIFTERS | Shimano GRX RX820 1x12 speed |
| FRONT DERAILLEUR | |
| REAR DERAILLEUR | Shimano GRX RX822 12 speed |
| CASSETTE | Shimano XT M8100 10-51T |
| CHAIN | Shimano XT M8100 12 speed |
| CRANKSET | (XS/S) Praxis 165mm (M/ML) Praxis 170mm (L/XL) Praxis 172.5mm |
| FRONT SPROCKET | TQ 44T |
| HEAD SET | |
| STEM | (XS) Bontrager Elite 31.8mm 70mm (S/M) Bontrager Elite 31.8mm 80mm (ML/L) Bontrager Elite 31.8mm 90mm (XL) Bontrager Elite 31.8mm 100mm |
| HANDLEBAR | (XS/S) Bontrager Elite Gravel 40cm (M/ML) Bontrager Elite Gravel 42cm (L) Bontrager Elite Gravel 44cm (XL) Bontrager Elite Gravel 46cm |
| GRIPS/HANDLEBAR TAPE | Bontrager Supertack Perf tape |
| SEATPOST | Bontrager carbon, 27.2mm, 8mm offset, 330mm length |
| SADDLE | Verse Short Comp, steel rails, 145mm width |
| SEAT CLAMP | |
| NOTES | Bike Specifications are subject to change without notice by the manufacturer. Specifications may not be exactly as shown in photo. |
Discover the Trek Checkpoint+ SL 5 – High-Performance and Comfortable Gravel E-Bike
The Trek Checkpoint+ SL 5 combines power, comfort, and versatility for all types of roads and trails. Lightweight, quiet, and robust, it turns every ride into an adventure.
New TQ HPR60 Motor: Smooth and Natural Power
The TQ HPR60 motor delivers 60 Nm of torque and a maximum output of 350 Watts, providing silent, progressive assistance—perfect for climbing hills or maintaining a steady pace on flat terrain.
360 Wh Battery with 160 Wh Range Extender
The integrated 360 Wh battery supplies the energy needed to power the TQ HPR60 motor (350 W / 60 Nm) on all your rides. Compact and seamlessly integrated into the frame, it maintains the bike’s sleek look while remaining easily accessible. With the optional 160 Wh Range Extender, you can increase total capacity and enjoy extra power for your longest and most demanding adventures.
Comfort and Vibration Absorption
The OCLV carbon frame with IsoSpeed absorbs bumps and vibrations, reducing fatigue and providing a smooth, stable ride on rough terrain.
Shimano GRX 12-Speed Drivetrain and Gravel Versatility
The Shimano GRX 12-speed groupset ensures smooth and reliable shifting. Multiple mounts for fenders, racks, and bags allow you to configure your bike for road, gravel, or bikepacking adventures.
Connectivity with the Trek Central App
With Trek Central, track your rides, adjust motor assistance modes, and plan your routes to make the most of every adventure.
Come Test It Today!
Try the Trek Checkpoint+ SL 5 in carbon at our Montréal store. Book your exclusive test ride and experience this revolutionary bike that perfectly blends performance and fun.
