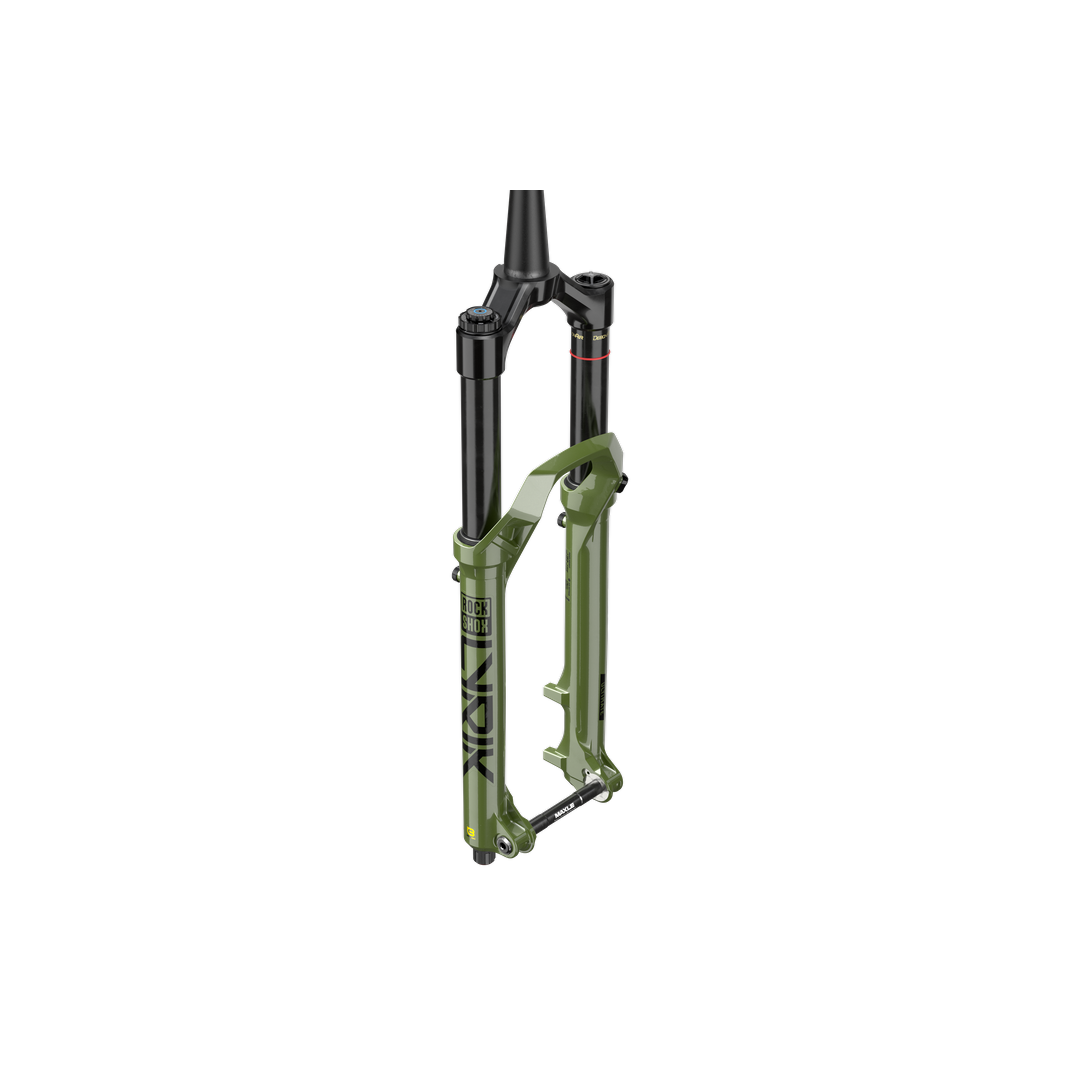

Rockshox Lyrik Ultimate 160mm

* Condition: New, removed from a bicycle

RockShox Lyrik Ultimate 160mm: an e-bike approved suspension fork for demanding trails

Charger 3 RC2 damper with ButterCups: precise control, fewer vibrations

The Charger 3 RC2 hydraulic cartridge gives you external begin-stroke rebound plus low-speed and high-speed compression adjustments, all reachable at the crown. ButterCups sit between the damper and the spring to absorb high-frequency vibration. Your hands stay fresher and the front wheel keeps tracking the ground.

DebonAir+ spring and 35mm chassis: 160mm of travel that takes a beating

The DebonAir+ air spring makes the most of 160mm of travel with a supportive feel you can tune using Tokens (0 to 5) and up to 163 PSI of air pressure. The 35mm tapered-wall aluminum uppers, forged hollow aluminum crown and magnesium lower legs handle up to 150 kg of system weight, which matters on a heavier electric bike.

Who is it for?

This fork is made for electric mountain bike riders on 29-inch wheels who ride technical trails and fast descents. It fits frames with a 1.5-inch tapered steerer, uses the included Maxle Stealth 15x110mm BOOST axle, works with disc brakes from 180mm to 220mm rotors and accepts a Bolt On - Short fender. Compare it with our forks and shocks to find the right match for your frame.

Specifications

• Steerer tube : 7 ¾ inches
• Compatibility: e-bike approved, 29-inch wheel, 15x110mm BOOST axle, 1.5-inch tapered steerer
• Travel and geometry: 160mm travel, 44mm offset, 571mm axle to crown, 59mm crown OD
• Damper and spring: Charger 3 RC2 with ButterCups, DebonAir+, 0 to 5 Tokens, 163 PSI max air pressure
• Braking and tires: disc brake, 180mm to 220mm rotor, tire up to 770mm diameter and 81mm wide
• Materials: forged hollow aluminum crown, 35mm aluminum uppers with Fast Black finish, magnesium lower legs
• Max system weight: 150 kg (331 lbs), ASTM F2043-EN17406 Class 4
