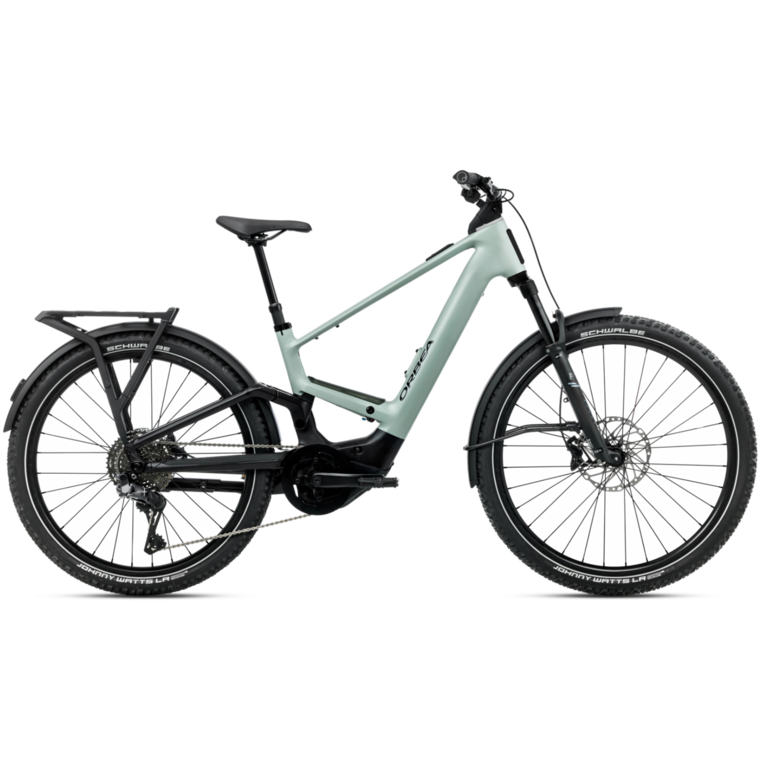

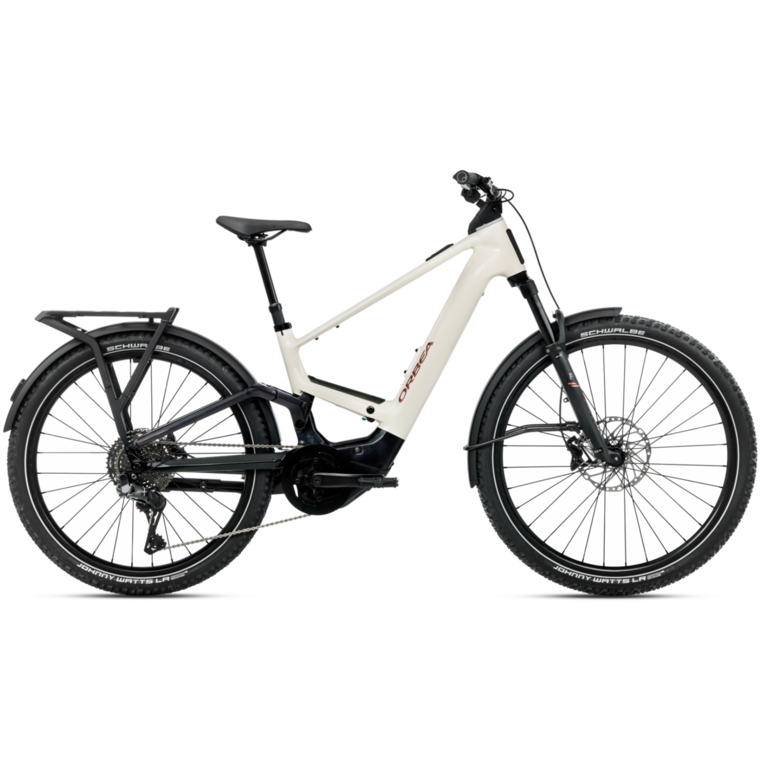

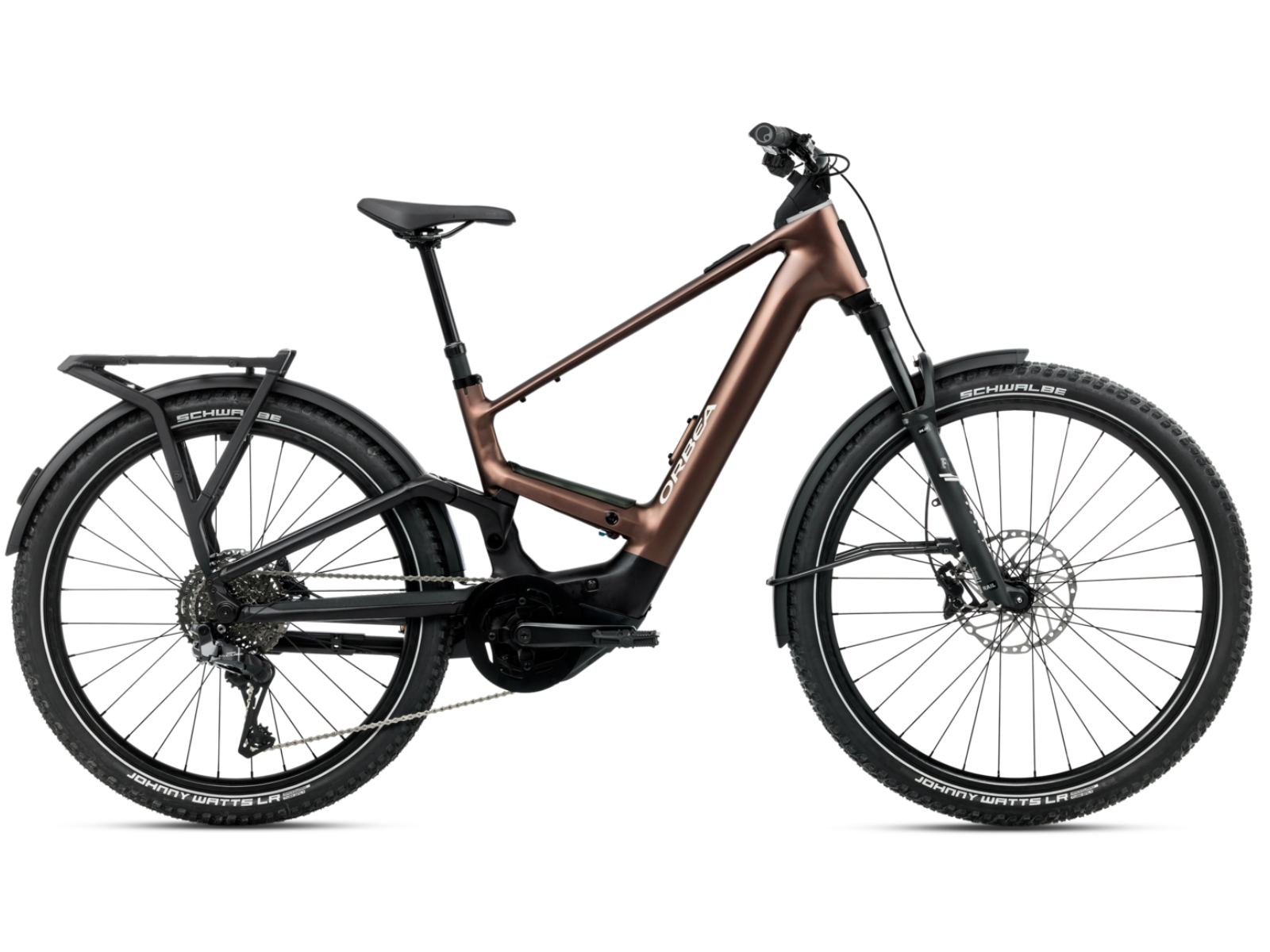

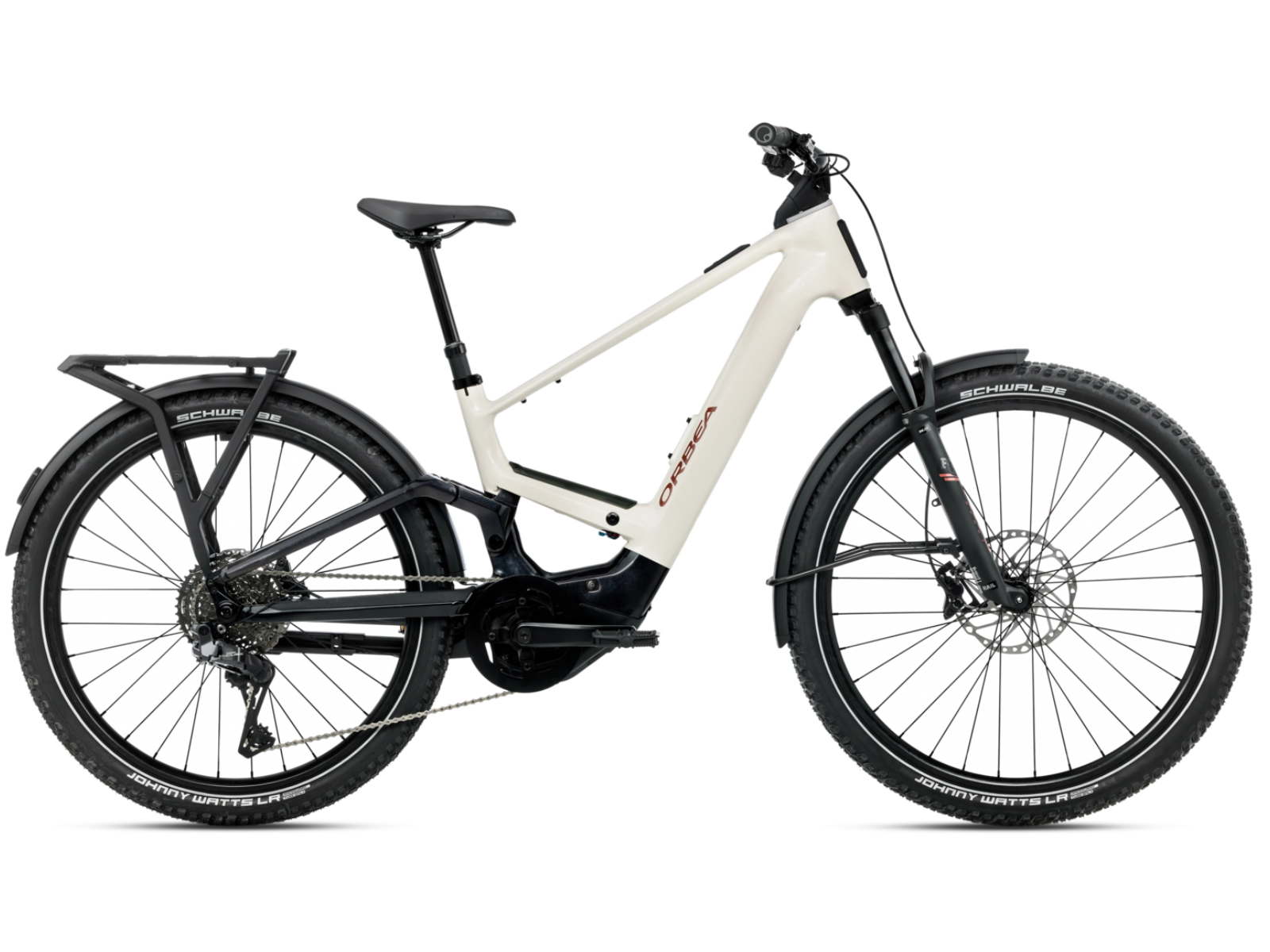

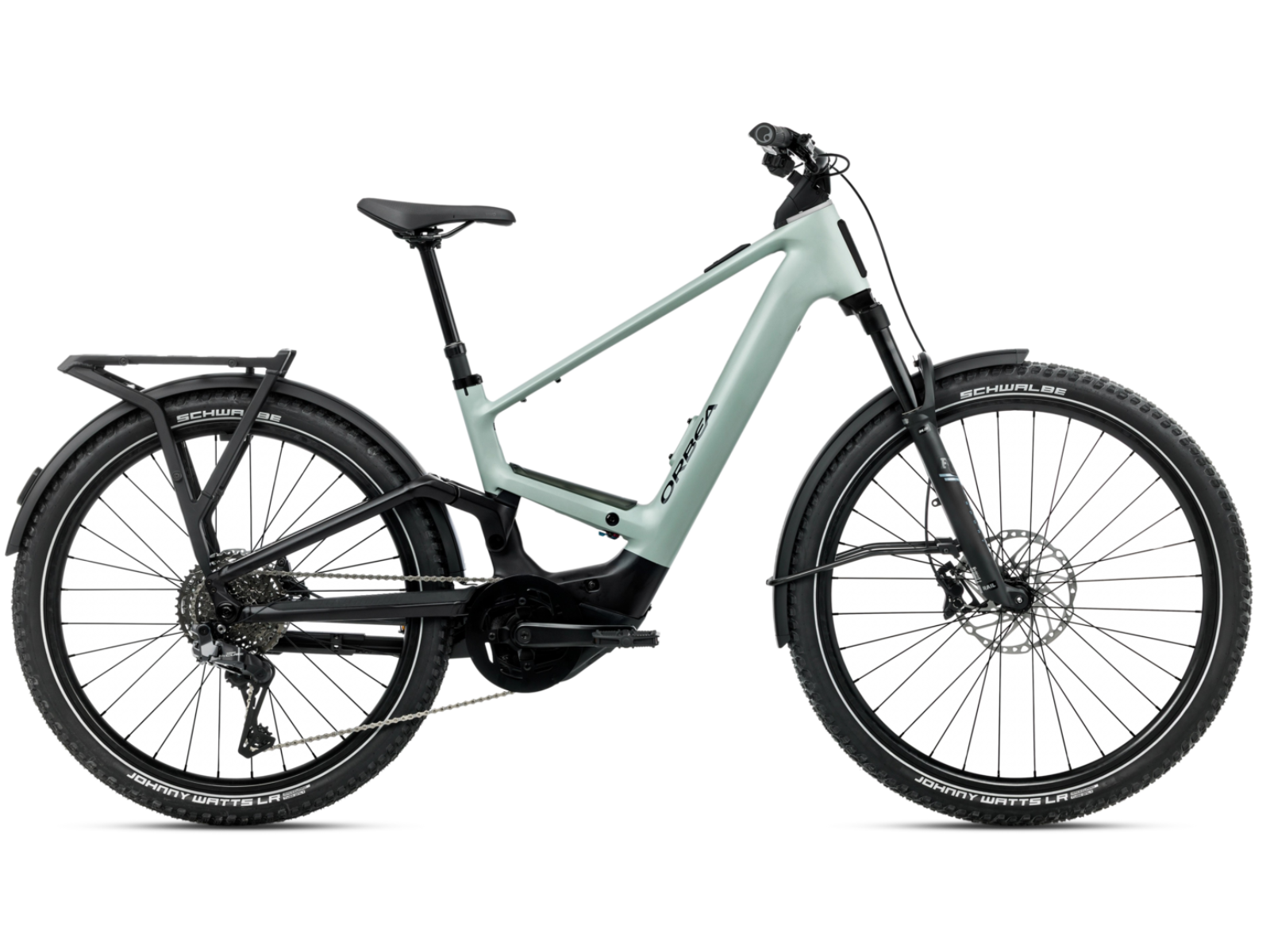

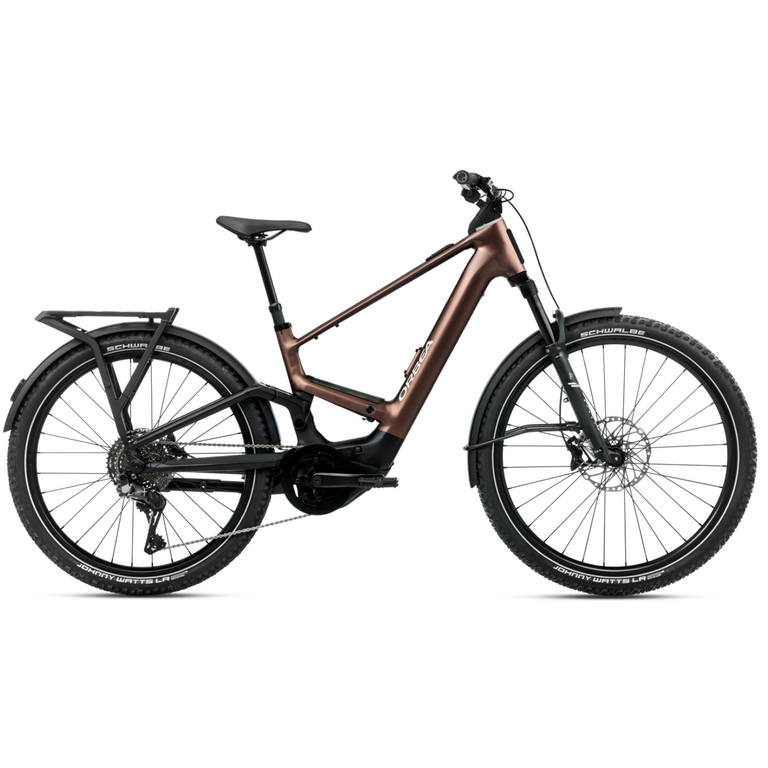

Orbea Muga 20
| FRAME | Orbea Muga 2026, Hydroformed Alloy 6061, OLD 148, Orbea cockpit ecosystem, carrier compatible |
| FORK | Fox 34 Float AWL Sport 120, Kabolt 15x110, Fender and ABS mounts |
| REAR SHOCK | Fox Float Performance Trunnion 2-Pos, 165x42.5 mm |
| DISPLAY | Bosch System Controller BRC3100 + Mini Remote BRC3300 |
| BATTERY | Bosch PowerTube 750 Wh Horizontal |
| DRIVE UNIT | Bosch Performance Line CX BDU3843 |
| CHARGER | Bosch Charger 4A (110V) |
| RIMS | Alloy, 26c, 32H |
| HUBS | Front: Orbea, 15x110 mm | Rear: Orbea, 12x148 mm |
| TIRES | Schwalbe Johnny Watts LR, 60-622 and 60-584, Reflective Tape |
| BRAKES | Shimano MT420, Hydraulic Disc |
| SHIFTER LEVER | Shimano EN605-R |
| REAR DERAILLEUR | Shimano Cues Di2 U8050, 11-speed, Shadow Plus |
| CASSETTE | Shimano CS-LG400, 11-45t, 11-speed |
| CHAIN | KMC eGlide |
| CRANKSET | Prowheel EB03, Alloy |
| FRONT SPROCKET | Orbea, BDU37/38, 42T |
| HEAD SET | FSA 1-1/2" Integrated Aluminium Cup |
| STEM | Orbea, adjustable 4-position integrated cockpit |
| HANDLEBAR | Orbea Urban, integrated light, backsweep 9°, rise 30 mm, width 760 mm |
| GRIPS | Orbea |
| SEATPOST | OC Mountain Control MC22, 31.6 mm, Dropper |
| SADDLE | Selle Royal Vivo Ergo |
| SEAT CLAMP | Orbea |
| FRONT LIGHT | Supernova Starstream Pure, Low Beam + Orbea Integrated position light |
| REAR LIGHT | Supernova TL3 Z |
| MUDGUARDS | Curana Apollo Orbit, 70 mm |
| REAR CARRIER | Orbea RR-02 Alloy, MIK HD, MIK Side, Ortlieb QL3.1 compatible, max. 30 kg |
| KICKSTAND | Orbea, integrated |
| NOTES | Bike Specifications are subject to change without notice by the manufacturer. Specifications may not be exactly as shown in photo. |
Orbea Muga 20 — Urban Adventure Without Limits
Bosch Performance Line CX Motor and 750 Wh Battery
The Muga 20 is powered by the Bosch Performance Line CX motor, one of the most powerful and responsive assist systems on the market. Paired with the 750 Wh Powertube battery, it delivers exceptional range for long urban rides and weekend adventures alike.
Fox Full Suspension — Fork and Rear Shock
Equipped with a Fox 34 Float AWL Sport 120 mm fork and a Fox Float Performance rear shock, the Muga 20 absorbs rough pavement and uneven paths with ease. The full-suspension platform provides a smooth, controlled ride whether you are commuting or exploring beyond the city limits.
Shimano CUES Di2 Electronic Shifting and Dropper Post
The Shimano CUES Di2 11-speed electronic drivetrain offers precise, effortless gear changes at the touch of a button. A remote-controlled dropper seatpost further enhances versatility, letting you adapt your riding position instantly on the fly.
Fully Equipped for Urban and Active Riding
From the Supernova front and rear lights to the Orbea integrated rear carrier, integrated kickstand and Curana mudguards, the Muga 20 arrives ready for daily urban use. The Orbea patented adjustable cockpit also lets you fine-tune your riding position for maximum comfort.
Come test ride it at E2-Sport in Montreal
The Orbea Muga 20 is available for a test ride at E2-Sport, your 100% electric bike specialist in Montreal. Book a test ride in-store and experience the full-suspension urban e-bike that redefines city exploration.
