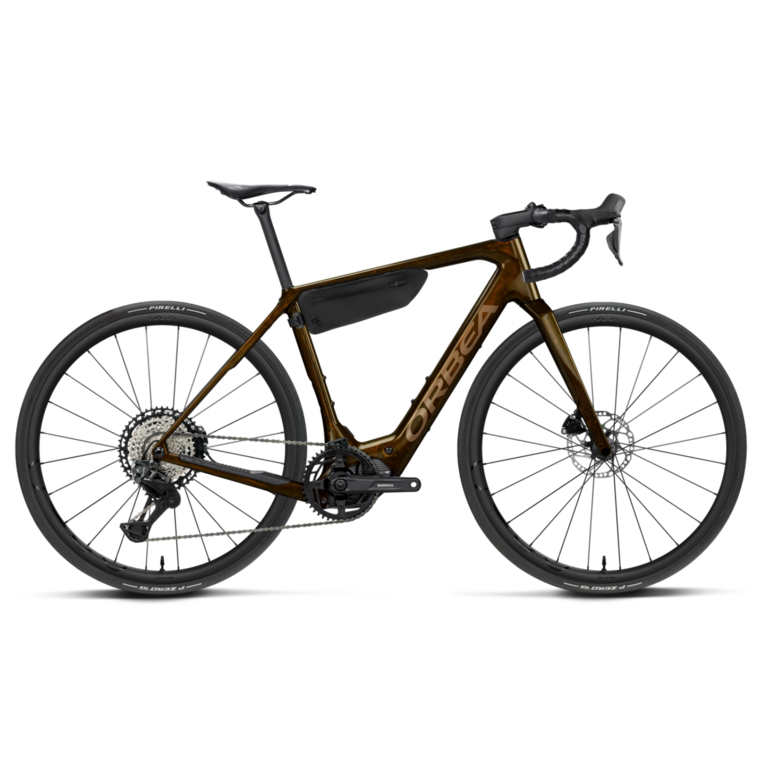

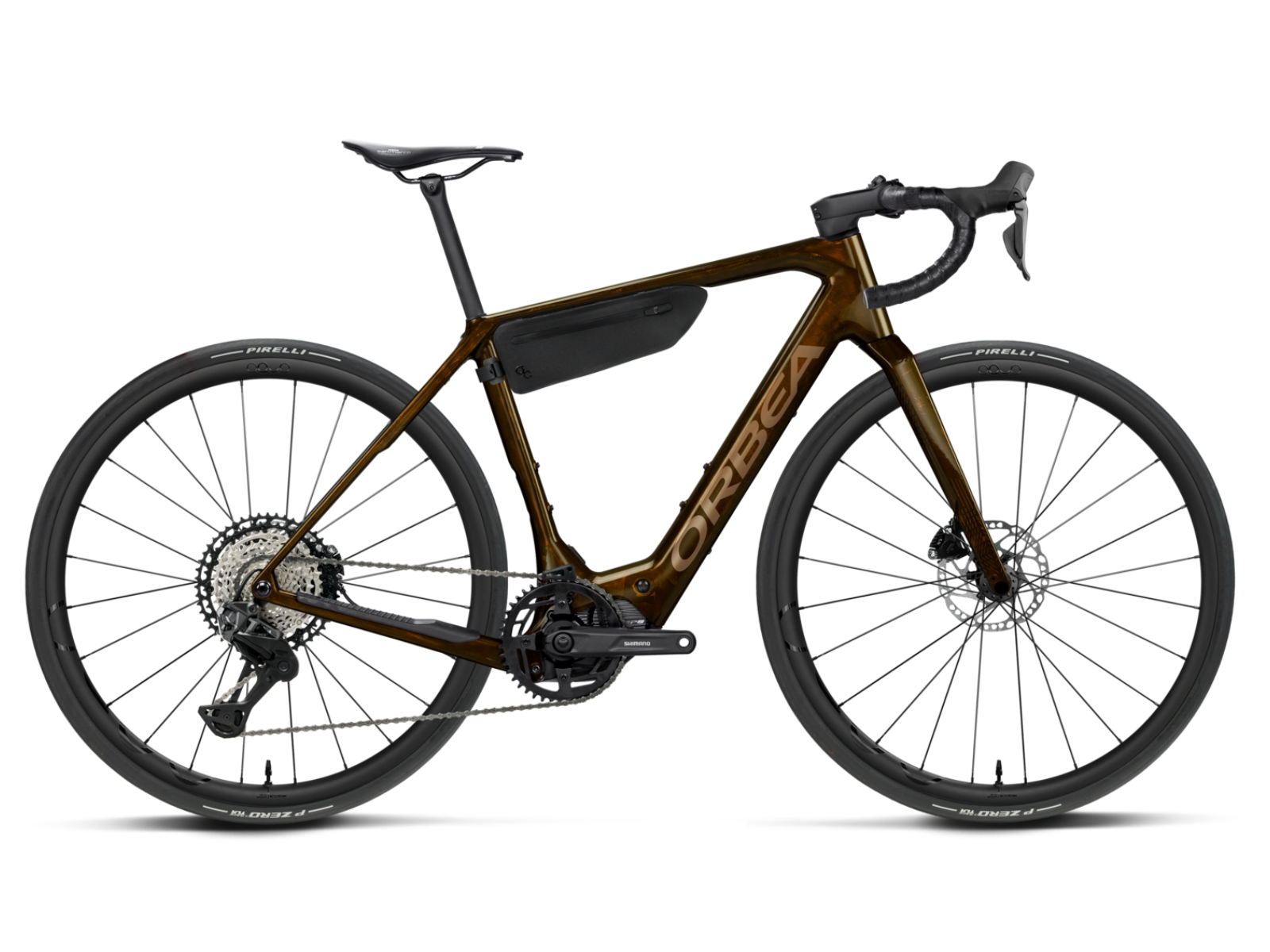

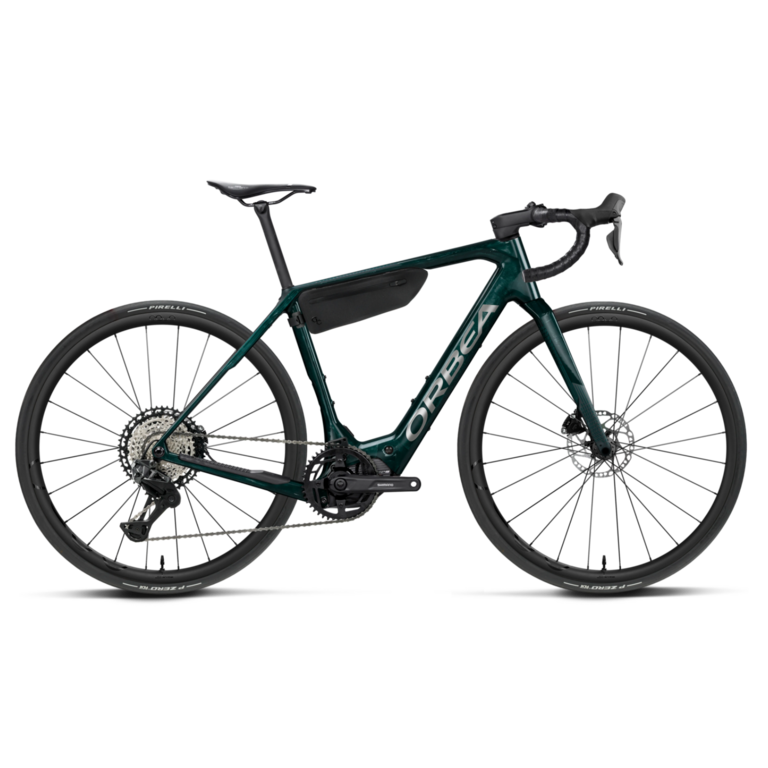

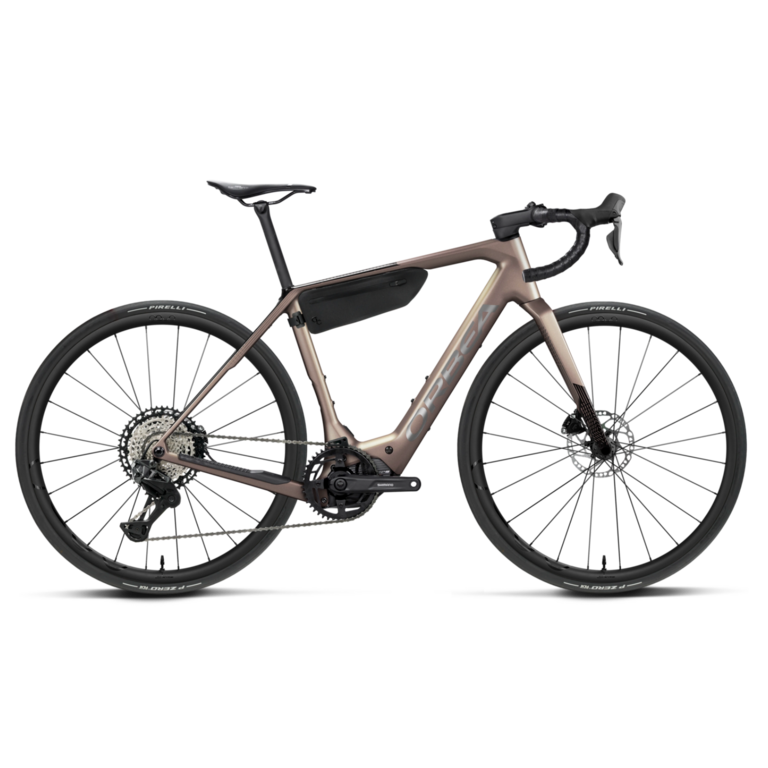

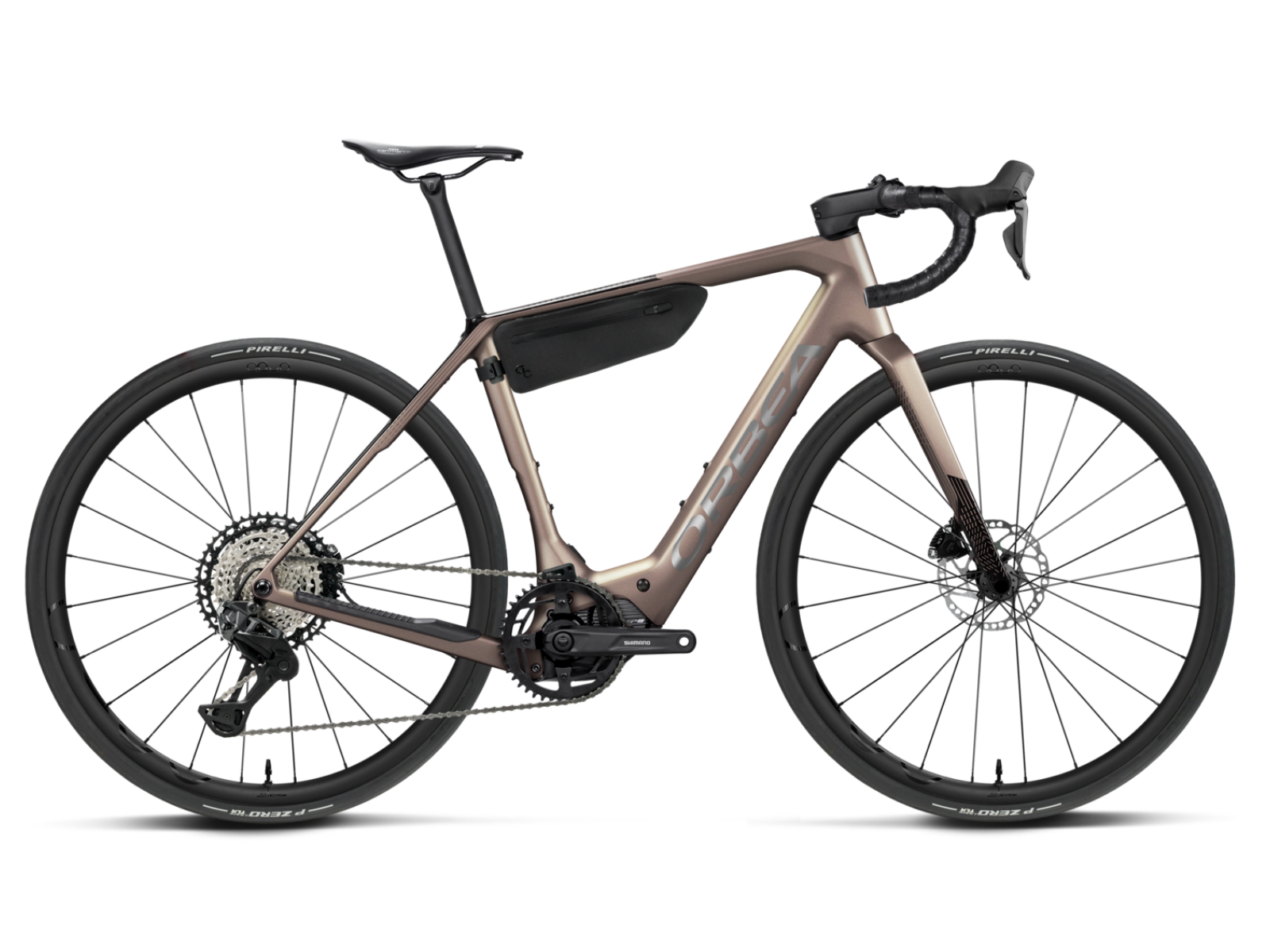

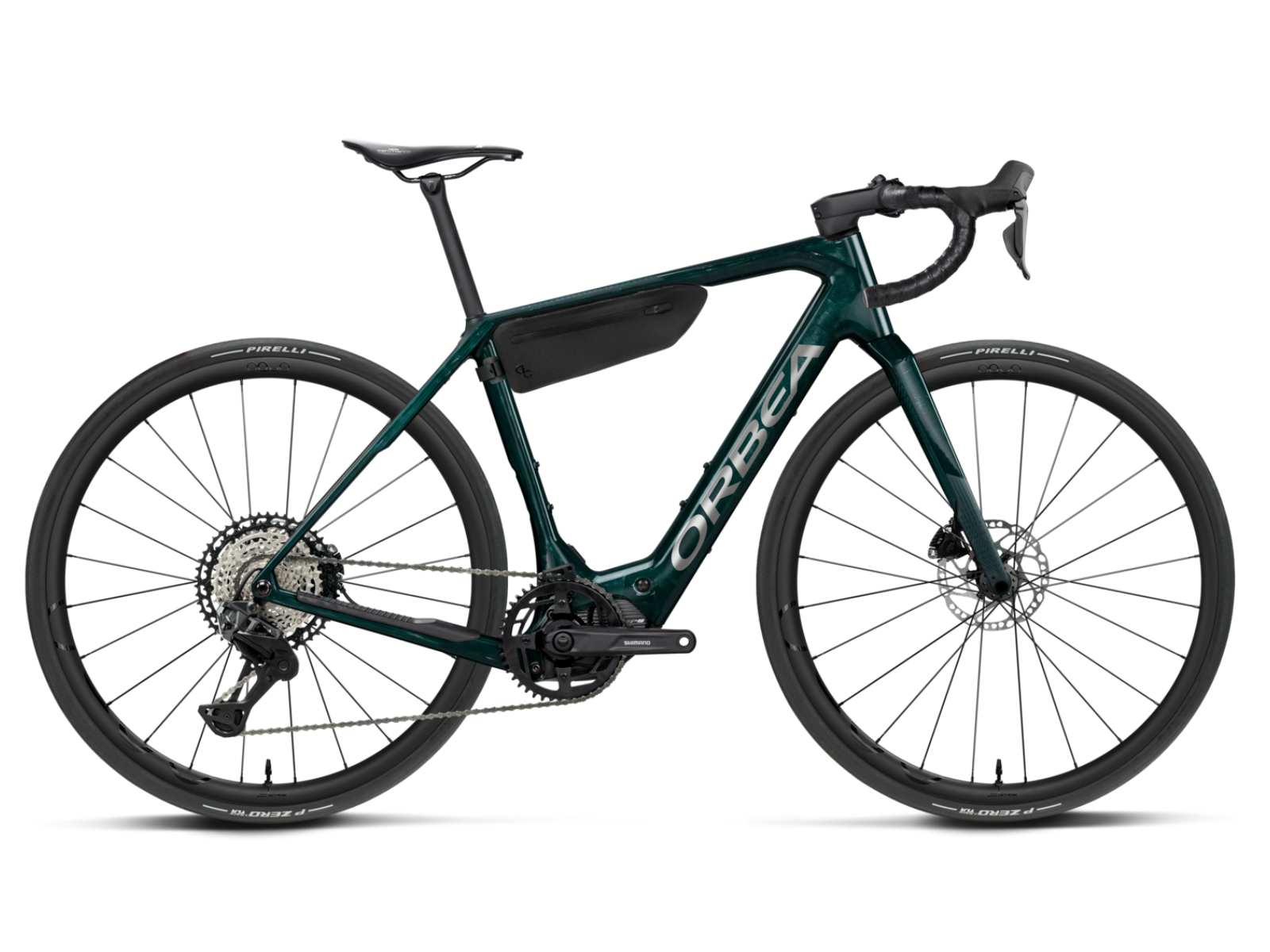

Orbea Denna M20i
| FRAME | Orbea Denna OMR carbon, internal cable routing |
| FORK | Orbea Denna OMR ICR, full carbon |
| DISPLAY | Shimano EN600-L |
| BATTERY | Orbea 420 Wh integrated |
| DRIVE UNIT | Shimano EP801RS-Gravel, RS Gen2 RC, maximum torque of 85 Nm |
| CHARGER | Orbea 2nd Generation eBike Smart Charger, 42 V / 2–4 A |
| FRONT RIM | Oquo Road Control RC30TEAM |
| REAR RIM | Oquo Road Control RC30TEAM |
| FRONT HUB | Orbea 12 x 100 mm thru axle |
| REAR HUB | Orbea 12 x 142 mm rear thru axle |
| SPOKES | Orbea |
| FRONT TIRE | Pirelli Cinturato Gravel H Classic 700 x 45c TLR |
| REAR TIRE | Pirelli Cinturato Gravel H Classic 700 x 45c TLR |
| FRONT BRAKE | Shimano GRX RX820 hydraulic disc |
| REAR BRAKE | Shimano GRX RX820 hydraulic disc |
| SHIFTERS | Shimano GRX Di2 RX825 electronic, 12-speed |
| FRONT DERAILLEUR | None – 1x drivetrain |
| REAR DERAILLEUR | Shimano XT Di2 M8260 SGS electronic, 12-speed |
| CASSETTE | Shimano CS-M8200, 10–51T, 12-speed |
| CHAIN | Shimano M6100 |
| CRANKSET | Shimano Steps EM600 |
| FRONT SPROCKET | Alloy EP8, 44T |
| HEAD SET | FSA 1-1/2" integrated aluminium cup |
| STEM | OC Road Performance RP10, -8° |
| HANDLEBAR | OC Gravel GR10 Carbon, 70 mm reach, 110 mm drop |
| GRIPS/HANDLEBAR TAPE | OC Components handlebar tape |
| SEATPOST | OC Performance XP10 Carbon, 27.2 mm, 0 mm setback |
| SADDLE | Selle San Marco Shortfit 2.0 Start Up Off Road Xilite |
| SEAT CLAMP | |
| NOTES | Bike Specifications are subject to change without notice by the manufacturer. Specifications may not be exactly as shown in photo. |
Orbea Denna M20i – Premium Gravel Performance
Shimano EP801 – Powerful Natural Assistance
The Denna M20i combines the responsive Shimano EP801 motor with Orbea’s lightweight carbon gravel platform. Its 420Wh integrated battery and RS Gen2 system deliver smooth, natural assistance that feels powerful on steep climbs while remaining efficient on long days in the saddle.
Performance Geometry – Fast, Stable and Controlled
The Denna is designed to handle high-speed gravel as confidently as rougher terrain. Its balanced geometry and carbon frame with controlled vertical flex provide stability and comfort while maintaining the responsive handling expected from a performance gravel bike.
Premium Equipment – Built for Demanding Riders
The M20i is defined by its high-end component selection. Electronic Shimano shifting, an XT rear derailleur, Shimano hydraulic brakes and OQUO RC30 TEAM wheels create a refined setup focused on precision, performance and control. Paired with 45C Pirelli Cinturato Gravel tires, it is ready for demanding rides.
Ready to Be Configured Your Way
With clearance for tires up to 50C and multiple configuration options, the M20i can be fine-tuned to your riding style. Choose different wheels, tires, cockpit components or seatpost options to prioritize speed, comfort or control depending on where you ride.
Experience the M20i at E2-Sport
The M20i is made to be experienced on the bike. Come visit us at E2-Sport in Montreal and feel the difference that premium components, electronic shifting and the natural EP801 assistance make on the road and gravel. Book your test ride and discover the Denna M20i.
